LAN CABLES

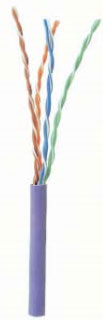

Lan Cable CAT 5E Series
| Specifications: |
UTP CAT5E |
FTP CAT5E |
| Center Conductor |
BC/CCA |
 |
BC/CCA |
 |
| Nominal dia .mm |
0.5 |
0.5 |
| Dielectric |
PE |
PE |
| Nominal dia .mm |
0.9 |
0.9 |
| Drain Wire |
|
|
| Nominal dia .mm |
|
0.4 |
| Shield |
|
|
| Foil |
|
AL/PET |
| Jacket |
PVC/PE |
PVC/PE |
| Nominal dia .mm |
5.1 |
5.8 |
| Messenger |
|
|
|
1.3 |
1.3 |
| Electrical Charecteristics |
UTP CAT5E |
UTP CAT5E |
| Impedance(Ohm) |
100=15 |
100±15 |
| Velocity of Propagation |
70 |
70 |
| Minimum Return Loss(dB) |
≥23 |
≥23 |
| Frequency Attenuation(dB/100m) |
NEXT |
PS-NEXT |
ELFEXT |
PS-ELFEXT |
| 1MHz |
2.0 |
62.3 |
65.3 |
63.8 |
60.8 |
| 4MHz |
4.1 |
53.3 |
56.3 |
51.7 |
48.7 |
| 10MHz |
6.5 |
47.3 |
50.3 |
43.8 |
40.8 |
| 16MHz |
8.2 |
44.3 |
47.3 |
39.7 |
36.7 |
| 20MHz |
9.3 |
42.8 |
45.8 |
37.7 |
34.7 |
| 31.25MHz |
11.7 |
39.9 |
42.9 |
33.9 |
30.9 |
| 62.5MHz |
17.0 |
35.4 |
38.4 |
27.7 |
24.8 |
| 100MHz |
22.0 |
32.3 |
35.3 |
23.8 |
20.8 |
Lan Cable CAT 6 Series
| Specifications: |
UTP CAT6 |
FTP CAT6 |
| Center Conductor |
BC/CCA |
 |
BC/CCA |
 |
| Nominal dia .mm |
0.57 |
0.57 |
| Dielectric |
PE |
PE |
| Nominal dia .mm |
1.0 |
1.0 |
| Cross |
|
|
| Drain Wire |
|
CCA |
| Nominal dia .mm |
|
0.4 |
| Shield |
|
|
| Foil |
|
AL/PET |
| Jacket |
PVC/PE |
PVC/PE |
| Nominal dia .mm |
6.0 |
6.2 |
| Messenger |
|
|
|
1.3 |
1.3 |
| Electrical Charecteristics |
UTP CAT6 |
STP CAT6 |
| Impedance(Ohm) |
100±15 |
100±15 |
| Velocity of Propagation |
70 |
70 |
| Minimum Return Loss(dB) |
≥23 |
≥23 |
| Frequency Attenuation(dB/100m) |
NEXT |
PS-NEXT |
ELFEXT |
PS-ELFEXT |
| 1MHz |
1.8 |
74.3 |
72.3 |
67.8 |
64.8 |
| 4MHz |
3.7 |
65.3 |
63.3 |
55.8 |
52.8 |
| 10MHz |
5.9 |
59.3 |
57.3 |
47.8 |
44.8 |
| 16MHz |
7.5 |
56.2 |
54.2 |
43.7 |
40.7 |
| 20MHz |
8.4 |
54.8 |
52.8 |
41.8 |
38.8 |
| 31.25MHz |
10.6 |
51.9 |
49.9 |
37.9 |
34.9 |
| 62.5MHz |
15.4 |
47.4 |
45.4 |
31.9 |
28.8 |
| 100MHz |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
| 200MHz |
29.0 |
39.8 |
37.8 |
21.8 |
18.8 |
| 250MHz |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
